Vibra-Technics - Bottom Engine/Subframe Mount (2.0TFSi & R32) - VAG520M

Vibra-Technics - Bottom Engine/Subframe Mount (2.0TFSi & R32) - VAG520M

Direct replacement for the factory original part (can be replaced with the cross member in place - but is much easier if removed) Reduces engine pitching backwards and forwards - essential for performance driving. The use of a natural rubber insulator gives vastly superior comfort and isolation from engine vibration over inferior aftermarket urethane mounts.

Supplied as a single part to replace both upper and lower OEM components, it replaces OEM bush part numbers 1K0199868A (upper) and 1K0199867A (lower)

Important Note

When fitting this Engine/Subframe Mount we strongly recommend replacing the dogbone mount bolts at the same time with brand new genuine VAG revised bolts. This is a must if your vehicle is Pre-2010 as the older revision bolts are simply not strong enough for uprated mounts. We also recommend to change the dogbone arm itself.

Associated Parts We Highly Recommend To Fit At The Same Time Which Vary Depending On Your Vehicle...

- EA113 TFSI Dogbone Arm - 1K0199855BJ

- EA113 TFSI MK2 TT / TTS Dogbone Arm - 3C0199855J

- MK5 R32 Dogbone Arm - 1K0199855BC

- EA113 TFSI Dogbone Arm Bolt Kit – Here

- EA113 TFSI MK2 TT / TTS Dogbone Arm Bolt Kit – Here

- MK5 R32 Dogbone Arm Bolt Kit – Here

- EA113 TFSI AKS Front Subrame Deadset Kit – AKSDSKF

- MK2 TT AKS Front Subframe Deadset Kit – AKSDSKFTT

- Vibra-Technics Dogbone Small End Bush (Suitable for all dogbone arms, TFSI, TT & R32) – VAG455B

Please Note!

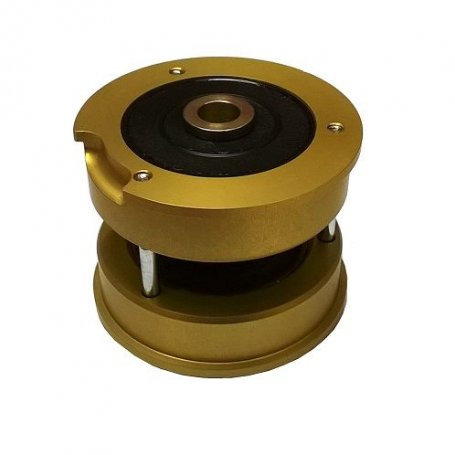

- Pictures are for illustration purposes only, the mounts are now gold in colour as per the first image!

- The Torque settings for the dogbone arm bolts are...

The M10 bolts 50nm + 90 deg

The M14 bolt 100nm + 90deg
