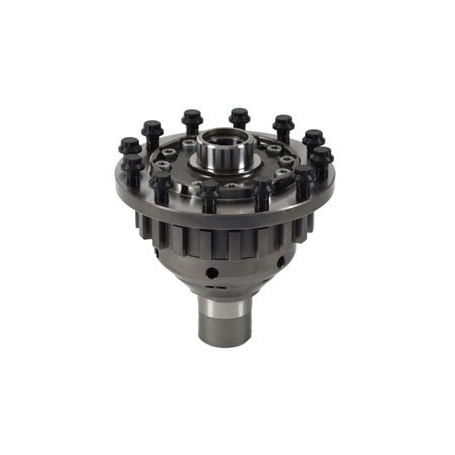

Quaife ATB Helical LSD differential - For 2WD VAG DSG 02E Transmission (Bolts Included) - QDF19R - QDF28R

Quaife ATB Helical LSD differential - For 2WD VAG DSG 02E Transmission (Bolts Included) - QDF19R - QDF28R

The Quaife Automatic Torque Biasing (ATB) helical gear limited slip differential is designed to prevent the complete loss of drive that occurs with a conventional 'open' differential when one wheel spins. Whilst requiring some torque in the slipping wheel to function, the Quaife ATB is progressive in action but never locks. Controlled power is transmitted to all the driving wheels. Ideally suited to high powered front wheel drive cars, Quaife ATB differentials also benefit rear and four wheel drive vehicles where optimum traction is required. A direct replacement for a factory 'open' differential, no special oils are required and the standard transmission lubrication can be retained. Lubrication services should be observed at factory intervals or more frequently for Quaife ATB units subjected to motorsport use.

The Quaife ATB differential is a true 'fit and forget' upgrade that offers compromise-free performance and reliability. Key features of the Quaife ATB helical gear limited slip differential include:

Safe, progressive and seamless in action, the Quaife ATB differential never 'locks'

Controlled power is transmitted to all driven wheels, to maximise traction and minimise wheelspin, particularly in slippery conditions

Fitment eliminates unwanted torque steer, understeer or oversteer

Designed to work in harmony with road car OEM electronic stability programs

Improves braking performance by reducing lock ups and minimises ABS intrusion

Reduces tyre wear, especially on front wheel drive cars

Gear operated with no components to replace ever

Direct replacement for factory standard 'open' differential unit

Retains normal axle lubrication systems and maintenance schedule

Over 250,000 units sold worldwide since the 1980's

Backed by the confidence of a Quaife lifetime warranty

Fits ALL VW / Audi / Seat and Skoda 6 Speed FWD 02E 2WD DSG Gearboxes

Fits the Following Vehicles:

• VW Golf MK5/MK6
• VW Jetta
• VW Passat B6
• Audi A3 8P
• Seat Leon MK2
• Skoda Octavia MK2

There are two options for the Parking Ring, 20 & 25 tooth. This can only be checked by stripping the Gearbox down and counting the teeth. Please check before you order, otherwise we can swap for the correct differential but you will need to cover the postage costs both ways.
