VIS Motorsport High Pressure Fuel Pump Internal Upgrade Kit - For C7 RS6 / RS7 4.0 Twin Turbo EA824 V8 - VISEA824V8

VIS Motorsport High Pressure Fuel Pump Internal Upgrade Kit - For C7 RS6 / RS7 4.0 Twin Turbo EA824 V8 - VISEA824V8

Features

- 20% more surface area and is capable of over 150bar of pressure.

- Ready for big turbo applications or just for stock power giving another 10 bar fuel rail pressure and some extra hp.(without Software upgrade)

- Piston head optimized for ideal fuel flow direction

- Piston surface hardened and heat treated in 2 different stages

- Laser marked for better traceability and protecting from fake / replica products

- Comes with fully detailed instructions including step by step fitting images.

- Each HPFP internal kit is sold as a rebuild kit only(not complete unit),but you send us your pump. We’ll inspect it, rebuild it, test it, and ship it back if you are not able to install! Either you can choose from our new complete units.

- 12 Months Warranty

- This product is sold as a kit including x2 internals, x1 for each HPFP as vehicles with this engine feature a HPFP on either bank of the engine!

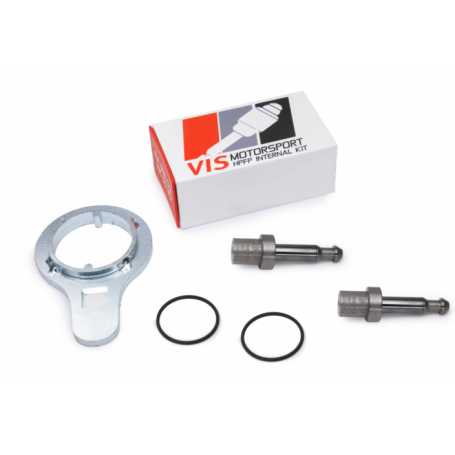

- Comes with install tool (Shown in image)

Tech facts

- Clearence at top of piston 0.001-0.00015

- Deviation of circularity max 0.001mm

- 370-450hb before rectification

- Nitrided at depth of 0.15-0.25

- Hardness of hv10-760-860 kgf/mm2 after nitriding

- 34mocr11 STAS 791-1988 special aged steel

This product fits the following vehicles

o Audi A6 / S6 / RS6 C7 | 2011-2018 4.0L TFSI (EA824) CEUC | 420 PS

o   Audi A6 / S6 / RS6 C7 | 2011-2018 4.0L TFSI (EA824) CRDB | 560 PS

o   Audi A6 / S6 / RS6 C7 | 2011-2018 4.0L TFSI (EA824) CTGE | 450 PS

o   Audi A6 / S6 / RS6 C7 | 2011-2018 4.0L TFSI (EA824) CWUC | 605 PS

o   Audi A7 / S7 / RS 7 C7 (4G) | 2010-2018 4.0L TFSI (EA824) 420 PS

o   Audi A7 / S7 / RS 7 C7 (4G) | 2010-2018 4.0L TFSI (EA824) 450 PS

o   Audi A7 / S7 / RS 7 C7 (4G) | 2010-2018 4.0L TFSI (EA824) 560 PS

o   Audi A7 / S7 / RS 7 C7 (4G) | 2010-2018 4.0L TFSI (EA824) 605 PS

o   Audi A8 / S8 D4 (Typ 4H) | 2009-2017 4.0L TFSI (EA824) 420 PS

o   Audi A8 / S8 D4 (Typ 4H) | 2009-2017 4.0L TFSI (EA824) 435 PS

o   Audi A8 / S8 D4 (Typ 4H) | 2009-2017 4.0L TFSI (EA824) 520 PS

o   Audi A8 / S8 D4 (Typ 4H) | 2009-2017 4.0L TFSI (EA824) 605 PS

VIS Motorsport Product Disclaimer

You are modifying the oem fuel system design, by doing this you are changing the operational parameters that could cause fuel system, motor, or drive train damage, and could also void your aftermarket or factory warranty. All VIS motorsport parts are for racing purposes and should not be used on any street driven vehicle. Some products are not legal for sale or use on pollution controlled motor vehicles. Before installing, you should check for wear on the existing camshaft lobe and follower, if worn camshaft must be replaced, the follower is strongly recommended to be replaced with a new part where applicable. We will not accept any claims due to improper installation, or for camshaft or follower failures, or for any damage to the internal kit of the fuel pump, engine or automobile as a result of these failures.

All warranties of any kind,whether express, implied, statutory, fitness for a particular purpose, or merchantability, are expressly disclaimed. The customer releases the company from all responsibility and liability and waives any and all claims against for any personal injury, property damage or damage to the product itself. Your acceptance of such risk and waiver of such claims is given through your installation of this part.
