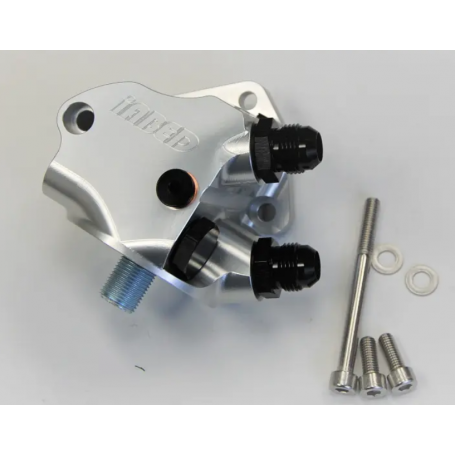

iABED VR6 Oil Filter Housing With Built In Thermostat - 462-635-0037

iABED VR6 Oil Filter Housing With Built In Thermostat - 462-635-0037

The ultimate solution for an oil filter housing for your 24V VR6 . Fits all 24V VR6 from 2002 till present. fits on 3.2 & 3.6 models.

Key features include :

• ¾-16€ threaded nipple for any screw on oil filter (Most common being either 06A 1.8T or similar - 06A115561B)
• MOCAL 90°C Thermostat incorporated into the housing allowing the installer to not need an additional thermostatic sandwich plate. (essentially an upgrade over iABED part 462-635-0024).
• M12 x 1.5 port for turbocharger oil feed.
• 1/8€ NPT port for aftermarket Oil Pressure / Temperature sender
• 2 M10 x 1.0 ports for OEM oil senders
• Compact lightweight design with material removal in non-critical areas to save on weight.

In the kit, you will recieve.

• (1) CNC Machined Housing
• (1) MOCAL Thermostat
• (1) 1/8€ NPT broached plug
• (1) ¾-16€ Threaded fitting
• (2) AN-10 Male ORB to Union fitting
• (1) M12 x 1.5 broached plug
• (1) CWM12 copper crush washer
• (2) 24 x 3mm N70 o-ring
• (1) M8 x 90mm stainless steel socket cap screw
• (2) M8 x 20mm stainless steel socket cap screw
• (2) M8 Stainless steel washer

Please Note -
This product requires the purchase of an additional air cooled oil cooler (Setrab , Mocal , etc of your choice)
