Vagbremtechnic Front Caliper Carrier Kit - Allows Fitment of DB9 4 Piston Brembo Calipers to OE 345mm Discs / B8 S4/5 -AK0010

Vagbremtechnic Front Caliper Carrier Kit - Allows Fitment of DB9 4 Piston Brembo Calipers to OE 345mm Discs / B8 S4/5 -AK0010

This front brake adaption kit allows the fitment of Aston Martin DB9 Calipers to VAG stock 345mm brake discs (see below for required parts & part numbers).
TTRS/RS3 Calipers can be used but the calipers will need 'reversing' (swapping bridge pipe & bleed nipples)

The caliper carriers are made from high strength zinc coated steel. The supplied front brake lines have been made to our specifications by HEL Performance, which include stainless steel fittings and are finished in their carbon black sheathing. The fitting kit includes bolts that are high tensile M12x1.25 coupled with A2 Stainless spring washers.

Please Note - AK0010 is for fitment on the Audi B8 platform only, IE B8 A4, A5, S4 & S5

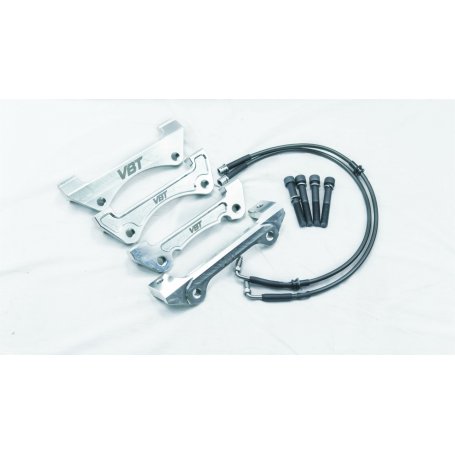

Included in our kit:
2x Caliper carriers
1x Set of Stainless Steel Braided Front Brake Lines
4x Caliper to carrier bolts
4x Spring washers for caliper to carrier bolts

To complete this front brake kit you will need:
2x Aston Martin DB9 4 Piston Brembo Calipers (Part No's@ 4G43-2C463 & 4G43-2C462) -- OR -- TTRS/RS3 4 Piston Calipers (Part No's: 8J0615107B / 8J0615108B) - If reversed
2x 345mm front brake discs (Part No: 8K0615301M - Pagid Number 54602)
1x Set of brake pads to suit your driving style
Brake fluid to flush system when installing
