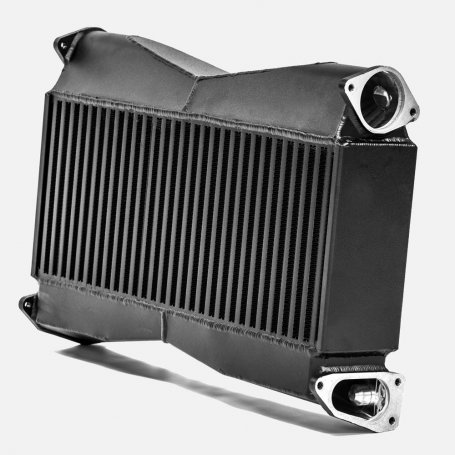

The Super Stock Intercooler is aimed at improving performance for Stage 4 and 4.5 customers who have reached the limits of the original intercooler core.

Designed to mount in the standard location the Super Stock intercooler offers higher performance in both flow and cooling capacity in a beautifully engineered and affordable package. It features a hand-built core with high flow end tanks and bespoke CNC-finished inlet and outlet flanges.

Depending on the specification of your Stage 4 or 4.5 (see below) the Litchfield Super Stock will provide around 15 bhp and as much as 40 bhp on a MY2015 Stage 4.5.

R & D

Litchfield Motors pride ourselves on our exhaustive R&D testing and to develop this all-new intercooler Litchfield Motors ran a rigorous series of tests between 8 different core designs.

Despite our considerable experience with intercooler design Litchfield Motors still wanted to pit different designs against one another and, to this end, Litchfield Motors tested €˜Bar and Plate', €˜Tube and Fin' and 'stuffed fin' style cores. Litchfield Motors also used various internal fin densities to make sure Litchfield Motors had the right combination of internal cooling and external airflow to the radiator. All were thoroughly evaluated to give us a complete set of data to draw conclusions from.

Litchfield Motors also compared the very best and most expensive motorsport intercooler cores to ensure that the final result, although intended for road use, would be the most effective intercooler available.

Testing Procedure

It was of paramount importance that these tests were run under strict, repeatable conditions.

Litchfield Motors used 2010 and 2013 GT-Rs, as our benchmarks, on a number of different days and ambient temperatures. Our own highly accurate and reliable twin-retarder Maha dyno would provide the test constant throughout. Both the GT-Rs used had the Litchfield Stage 4 conversions, offering an already considerable power hike over the OEM car.

Multiple runs were undertaken with the cars at a modest 1.0 bar of boost. Then the ECUs were raised to between 1.2 and 1.3 bar, allowing the turbos to run at their maximum aerobic capacity.

For each run Litchfield Motors noted every possible variable, from before and after temperatures, through to pressures drops across the cores and all torque and bhp changes. Mapping was tightly controlled to ensure that each test run was precisely comparable to each and every subsequent dyno run with no additional assistance or changes from the engine management system.

Results

After months of development and testing Litchfield Motors are delighted with the end result. Whilst each of the intercoolers tested offered a gain of some sort, our final design was able to offer the greatest improvement. It raised the power output of the most powerful Stage 4 car from 650 bhp to over 680 bhp making the Litchfield Super Stock Intercooler the most effective stock location intercooler on the market.

Please Note these will have a silver core with black end tanks
