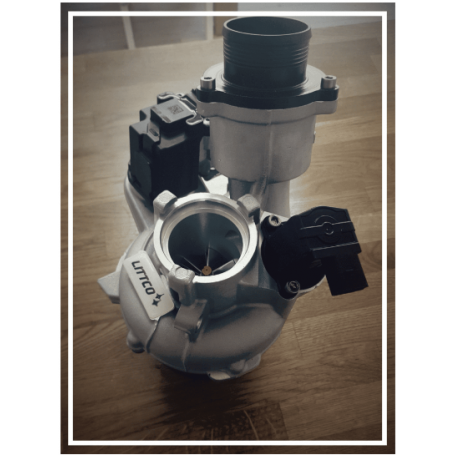

LITTCO L560 MQB Hybrid Ball Bearing Turbo

The L560 is the ultimate IS38 Hybrid, featuring ball bearing technology

( Suitable for forged engines)

- Custom 55mm Billet compressor wheel

- Custom 9 blade turbine with larger exducer for better flow and efficiency

- Custom made turbine housing, made specifically for us and made in the same stainless steel material as the original

- Custom compressor cover, made of solid aluminium ( no oem insert)

- CNC machined housings to exact specifications

- Ceramic G25 ball bearing Cartridge, with upgrade brass cages.

This is our latest Ball Bearing IS38 hybrid. Based on the L500 but with an aggressive compressor wheel, this turbo is designed for spool and flow. We have achieved 2bar boost by 3500rpm, with the transient response on gear change improved due to the highly efficient ball bearings used in this turbo. The high flow 9bladed turbine wheel offers huge potential for power and this exact wheel has been test to over 650bhp on other platforms.

VSR balanced above OE standards. We typically aim to get all our turbos below 0.5g up to a max of 130,000rpm which far exceeds the OE standards of 1g/1.5g

All Littco turbos are special order, and non returnable.
